Informazioni di Base.

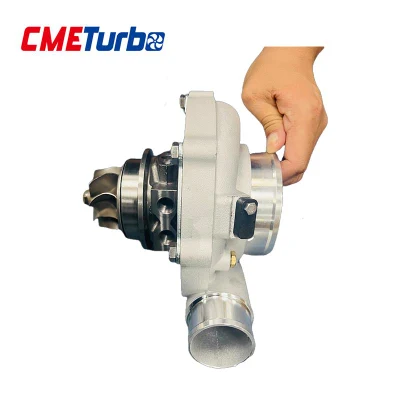

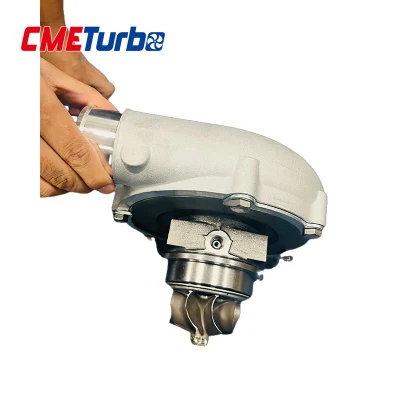

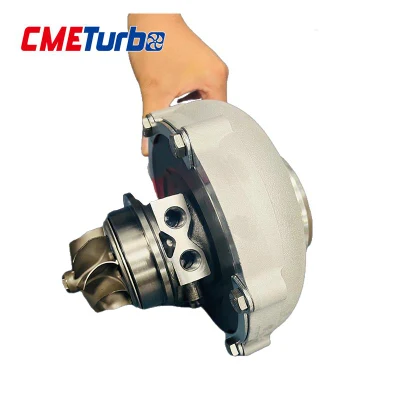

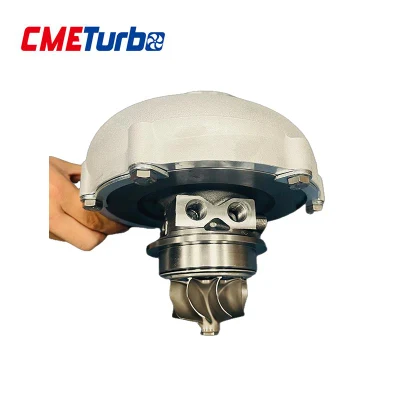

Model No.
G30-770
ETS Componente
Turbine and Compressor
ETS Tipo
Deflusso
Applicazione
Performance
Marca
Cme
modello
G30-770
cw
58 mm
condizione
nuovissimo
n. cod
880693-5002s
Pacchetto di Trasporto
Neutral Packaging
Specifiche
OEM Standard
Marchio
CME or customer′s requirement
Origine
Jiangsu
Codice SA
8414803090
Capacità di Produzione
50, 000PCS\Year
Descrizione del Prodotto
G30-770 | Compressore | Turbina | |||||
---|---|---|---|---|---|---|---|
Induttore | Condotto di estrazione | Accorciatura | A/R. | Induttore | Condotto di estrazione | Accorciatura | |
HP: 475 770Â DISP: 2.0L-3.5L | 58 mm | 71 mm | 65 | 0.72 | 60 mm | 55 mm | 84 |
Turbo: Rotazione standard | N. PARTE | A/R. | Ingresso | Uscita | Wastegate | Diviso | |
Assemblato e calibrato con attuatore a 0.5 bar | 880704-5005S | 0.83 | Banda V. | Banda V. | Interno | N | |
880704-5006 S. | 1.01 | Banda V. | Banda V. | Interno | N | ||
Supercore | N. PARTE | ||||||
Rotazione standard | 880693-5002S | ||||||
Rotazione inversa | 880694-5002S | ||||||
Kit turbina rotazione standard | N. PARTE | A/R. | Ingresso | Uscita | Wastegate | Diviso | |
Intercambiabile con rotazione standard G30-660 | G30-770 | Supercore G30-900 | 740902-0092 | 1.06 | T4 | Banda V. | Flottazione libera | Y | |
740902-0090 | 0.83 | T3 | Banda V. | Flottazione libera | N | ||
740902-0091 | 1.01 | T3 | Banda V. | Flottazione libera | N | ||
740902-0086 | 0.61 | Banda V. | Banda V. | Flottazione libera | N | ||
740902-0087 | 0.83 | Banda V. | Banda V. | Flottazione libera | N | ||
740902-0088 | 1.01 | Banda V. | Banda V. | Flottazione libera | N | ||
740902-0089 | 1.21 | Banda V. | Banda V. | Flottazione libera | N | ||
Kit turbina rotazione inversa | N. PARTE | A/R. | Ingresso | Uscita | Wastegate | Diviso | |
Intercambiabile con rotazione inversa G30-660 | G30-770 | Supercore G30-900 | 740902-0100 | 0.83 | T3 | Banda V. | Flottazione libera | N | |
740902-0101 | 1.01 | T3 | Banda V. | Flottazione libera | N | ||
740902-0096 | 0.61 | Banda V. | Banda V. | Flottazione libera | N | ||
740902-0097 | 0.83 | Banda V. | Banda V. | Flottazione libera | N | ||
740902-0098 | 1.01 | Banda V. | Banda V. | Flottazione libera | N | ||
740902-0099 | 1.21 | Banda V. | Banda V. | Flottazione libera | N |
